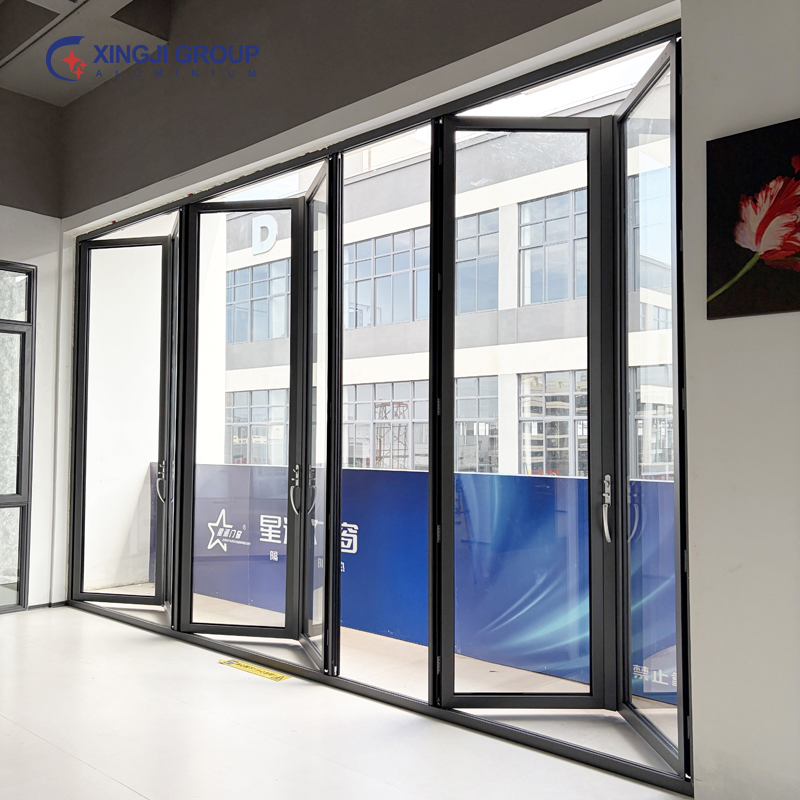

The Patio Partition Aluminum Bi-folding Door is a premium architectural solution engineered to redefine the way you connect interior and exterior living spaces. Whether you are looking to open up your patio to the garden, create a stunning balcony enclosure, or install a versatile room partition, this Aluminum Entry door system delivers unparalleled performance, aesthetics, and functionality.

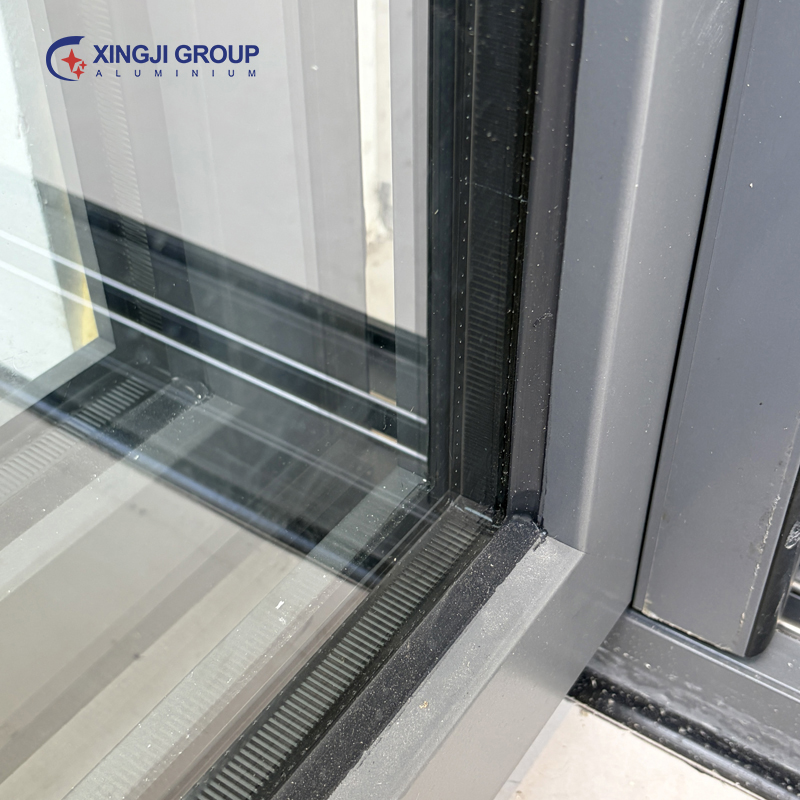

Crafted from high-grade aluminum alloy with frames and double-glazed glass, our Patio Balcony Double Glaze Door system combines modern design with acoustic insulation. The bi-fold mechanism allows multiple hinged panels to fold and stack neatly to one or both sides, creating an ultra-wide opening of up to 90% of the aperture.
With customizable configurations ranging from 2 to 14 panels, this Outdoor Bi-Folding Door system adapts to openings of virtually any size—from modest patio entrances to full-wall spans that erase the boundary between indoors and outdoors. The slim aluminum profiles ensure narrow sightlines and maximum glass area, flooding your space with natural light while maintaining structural integrity.

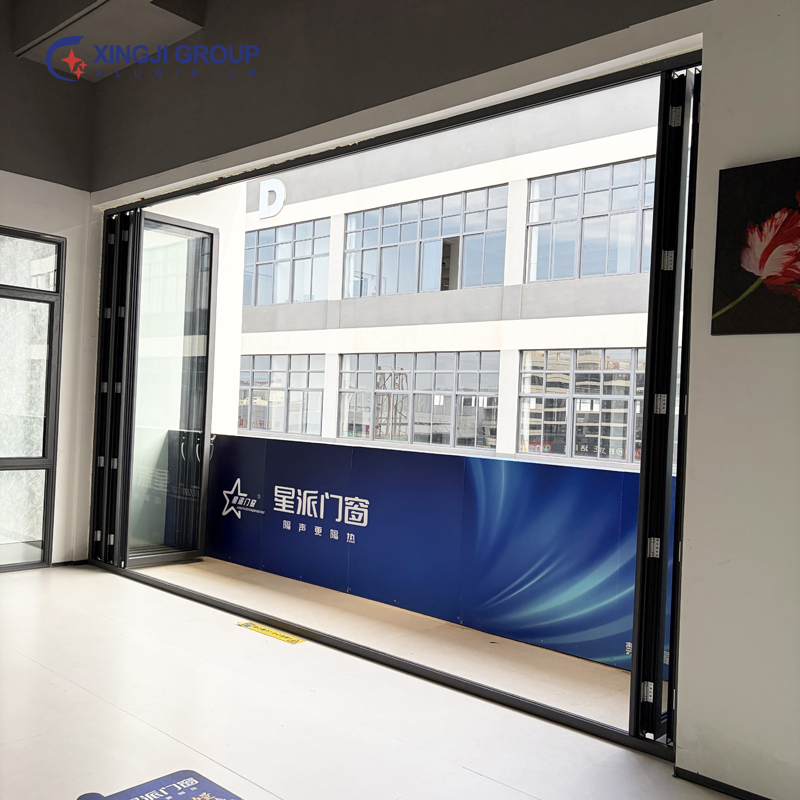

The defining feature of any Aluminum Entry door with bi-fold technology is its ability to create a completely open passage. Unlike traditional sliding doors that leave half the opening fixed, our Patio Balcony Double Glaze Door folds all panels away, delivering a clear opening that maximizes indoor-outdoor flow. This makes it the ideal choice for patios, balconies, terraces, and commercial storefronts where expansive, uninterrupted views are essential.
Traditional swinging or sliding doors require significant clearance space to operate. Our Outdoor Bi-Folding Door eliminates this constraint entirely. The multi-panel folding mechanism allows the door to stack compactly against the wall, saving up to 40% more floor space compared to conventional sliding doors. This space-efficient design is particularly valuable for narrow balconies, compact patios, or areas where every square foot counts.
Urban living often comes with unwanted noise. Our Soundproof Bi-Folding Aluminum Door is engineered to address this challenge head-on. The combination of double-glazed glass and precision-sealed aluminum frames delivers outstanding acoustic insulation, reducing external noise by up to 40dB compared to non-insulated alternatives. Whether you live near a busy street or simply value peace, this Soundproof Bi-Folding Aluminum Door ensures a serene indoor environment without compromising on style or natural light.
Aluminum is renowned for its strength, corrosion resistance, and longevity. Our outdoor bi-folding door is constructed from architectural-grade aluminum alloy with powder-coated or anodized finishes that resist fading, scratching, and weathering. Unlike wood, aluminum does not warp, crack, or expand under temperature fluctuations, making it the perfect material for exterior applications in any climate. With minimal maintenance required, this Double Glass Folding door will retain its sleek appearance and smooth operation for decades.

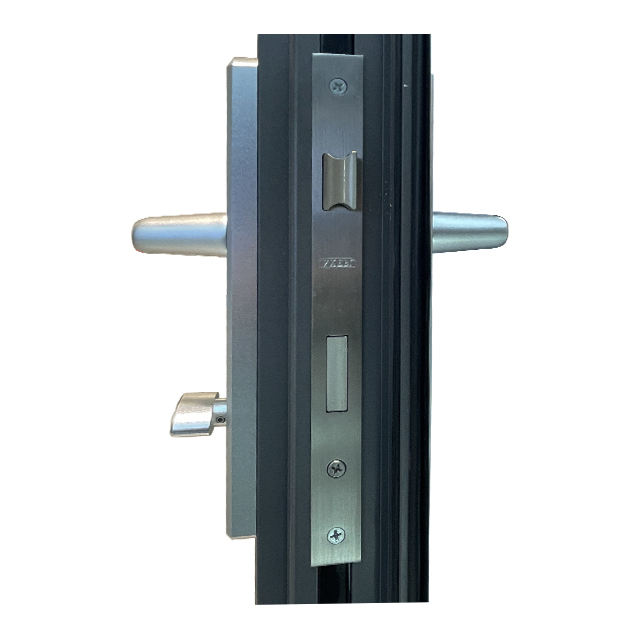

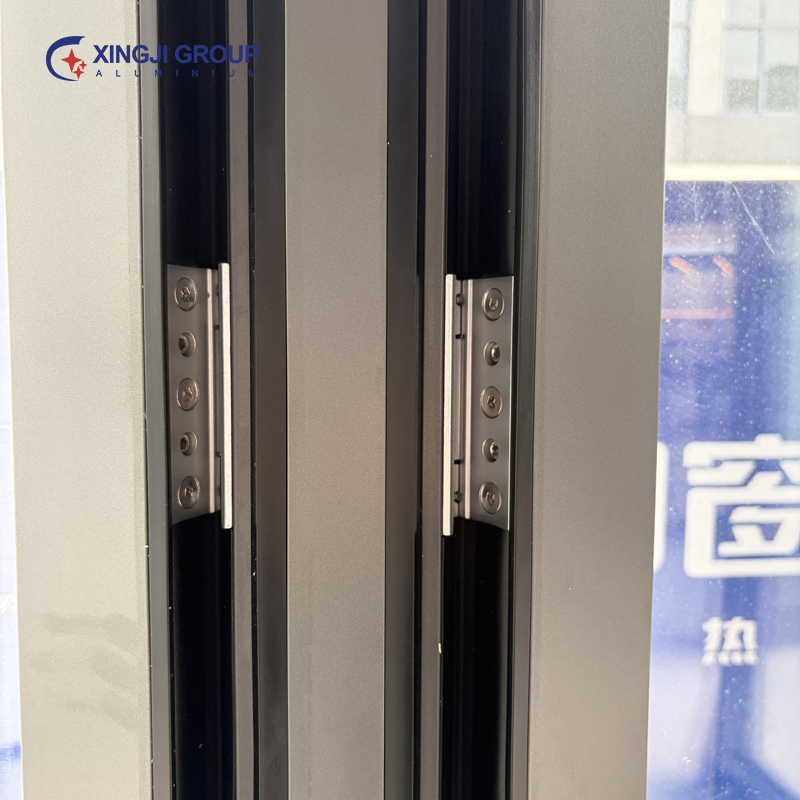

Security is a top priority for any Aluminum Entry door. Our bi-fold systems feature multi-point locking mechanisms, anti-lift pins, and shoot-bolt locks on intermediate panels. With PAS 24 certification available on select configurations, you can trust that your Patio Balcony Double Glaze Door provides robust protection against unauthorized entry. The heavy-duty hardware and stainless steel fittings ensure secure closure and long-term reliability.

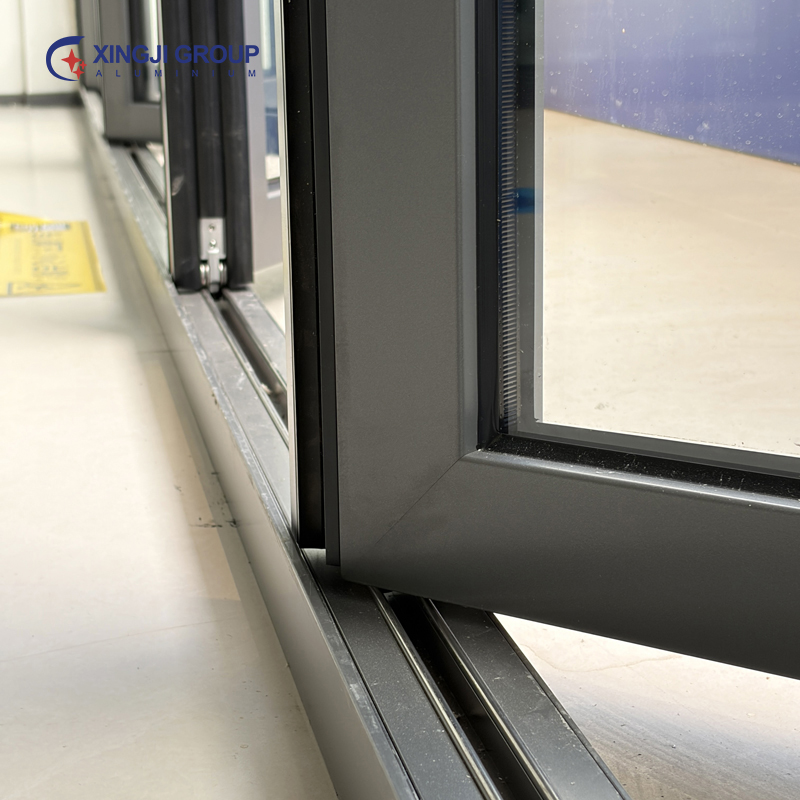

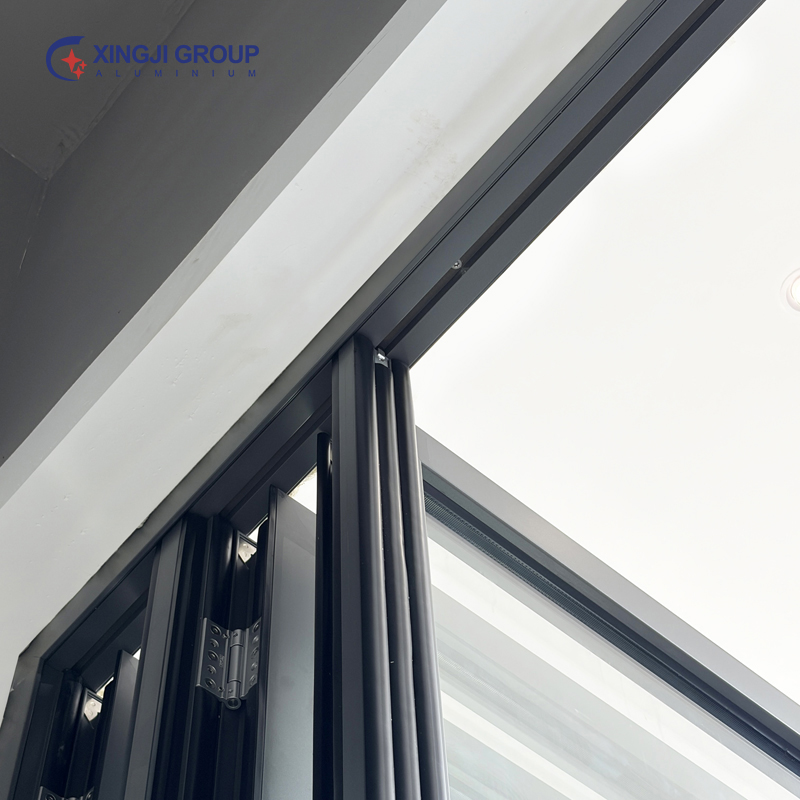

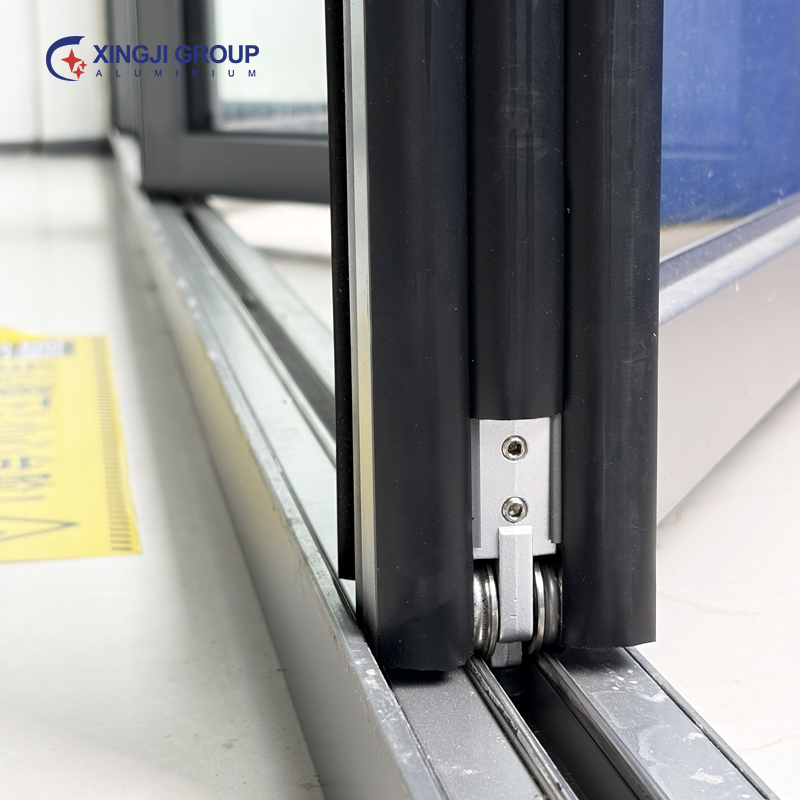

Our outdoor bi-folding door is designed for daily convenience. Top-hung systems ride on an overhead track for a crisp, smooth feel, while bottom-rolling options are available for installations where overhead structure cannot carry the load. High-quality rollers and precision-engineered hardware allow panels weighing up to 120kg to be operated with ease. A dedicated traffic door can be integrated into the system, allowing you to step in and out without opening the entire Double Glass Folding door.
One of the greatest strengths of our Patio Partition Aluminum Bi-folding Door is its remarkable flexibility in panel configuration. Whether you need a compact 2-panel solution or a grand multi-panel installation, we have you covered.
The panel count for your Outdoor Bi-Folding Door depends on opening width, structural limits, folding layout, and traffic door needs. Fewer panels (2–4) mean simpler handling and lower cost for small patios. More panels (6–14) provide wider openings and tighter stacking, ideal for large terraces or storefronts. Each Aluminum Entry door configuration balances aesthetics, budget, and functionality to match your space perfectly.

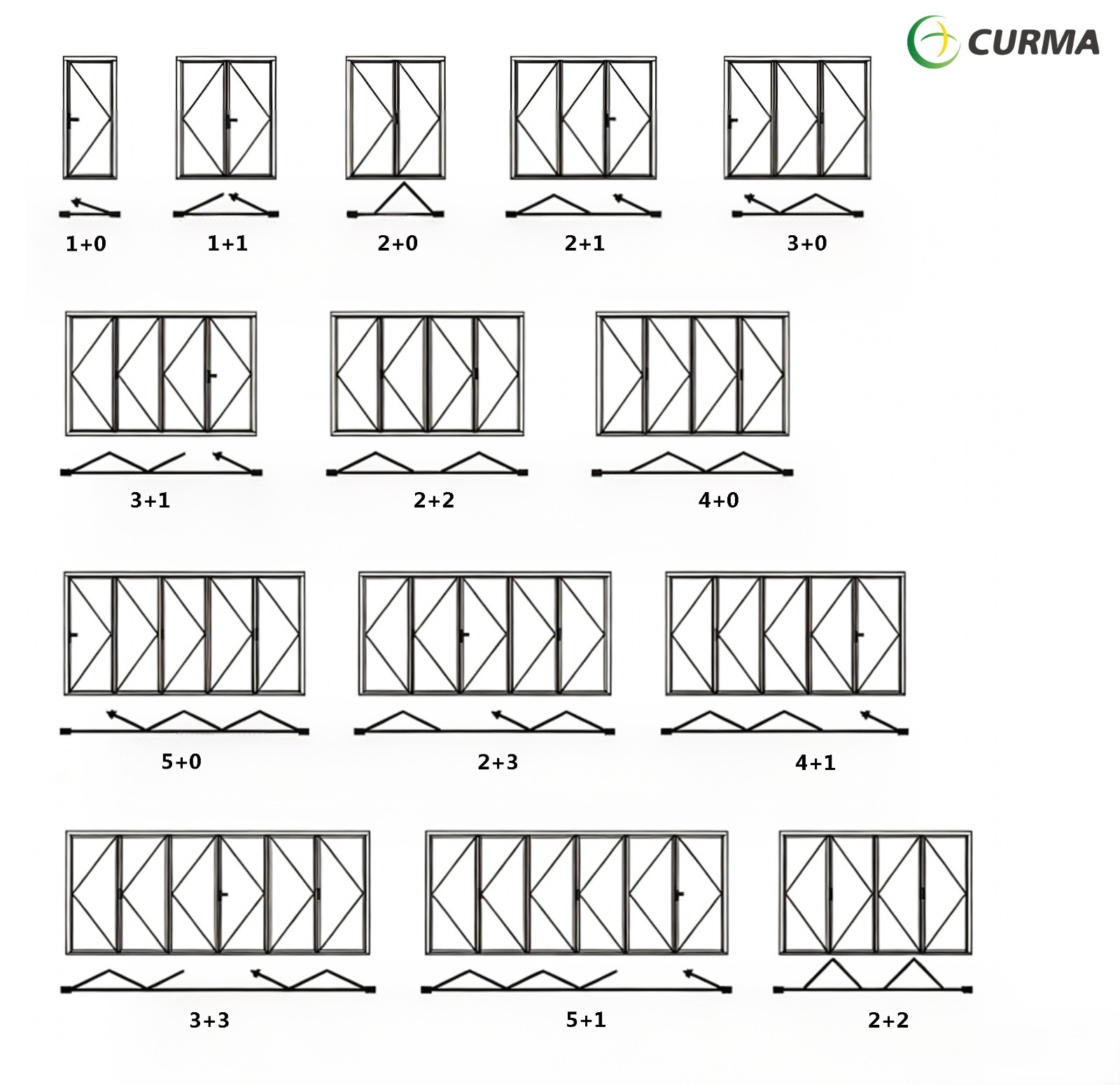

Our Outdoor Bi-Folding Door offers multiple folding configurations to suit your space and lifestyle:
Ø One-Way Folding – All panels stack to a single side, ideal when you have clear wall space on one side of the opening.
Ø Bi-Parting (Two-Way Folding) – Panels split and stack to both sides, shortening the stack depth at each jamb and often improving daily usability.
Ø Uneven Splits – Custom configurations such as 3+1, 4+1, or 2+3 allow you to position the traffic door exactly where you need it.

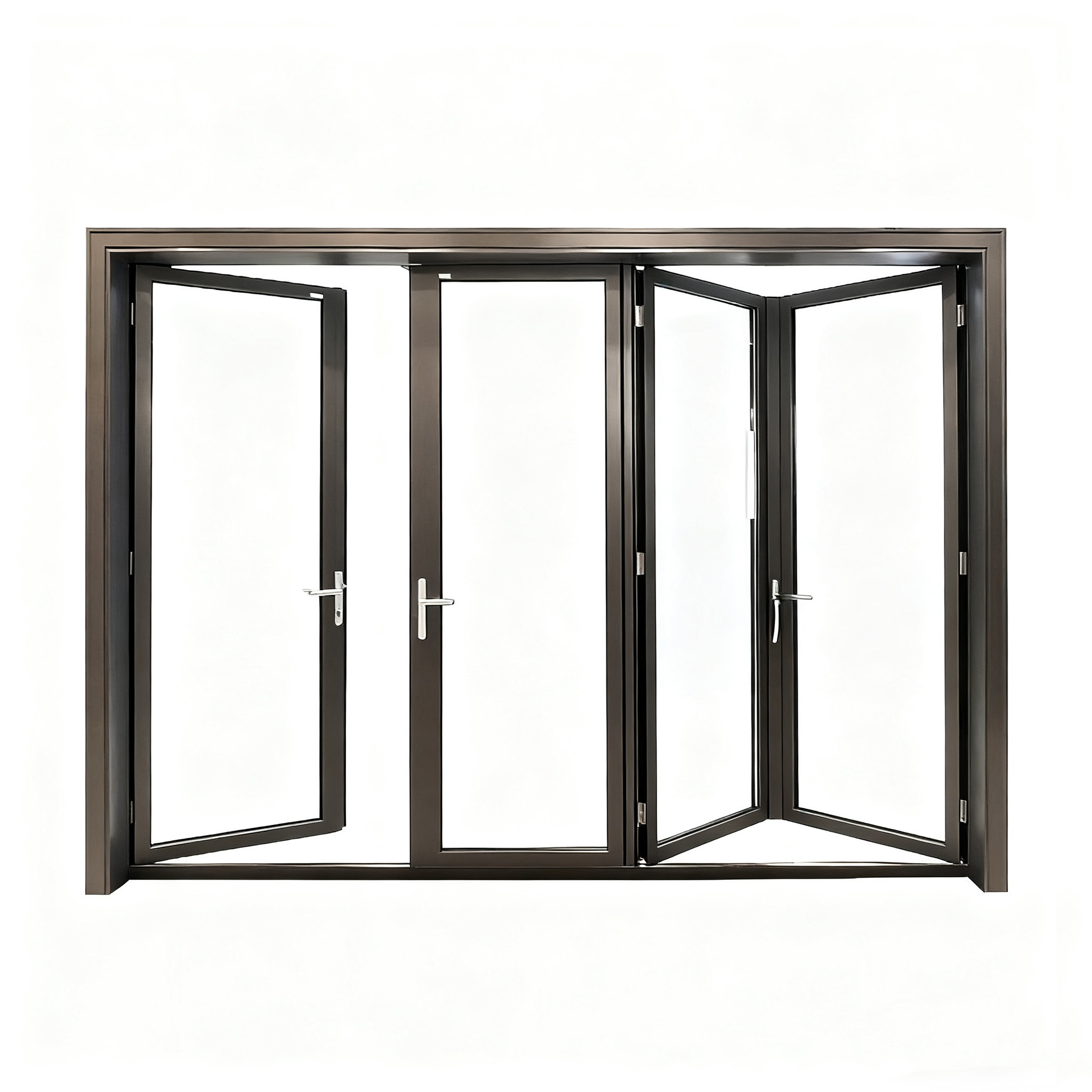

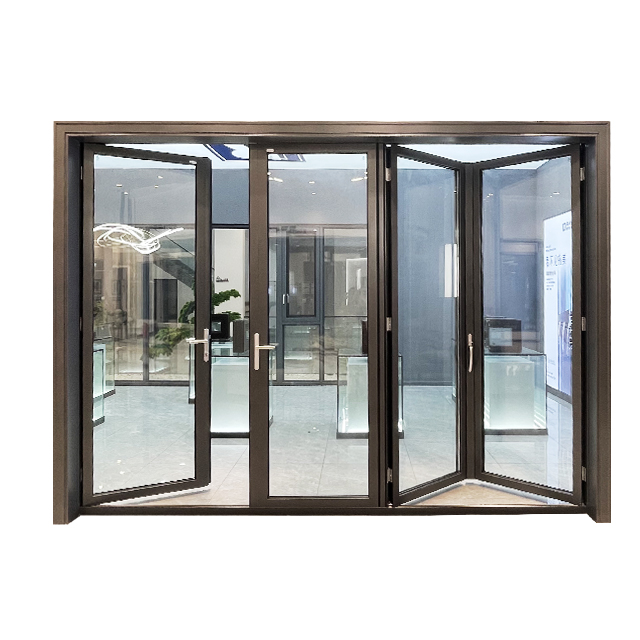

Every Aluminum Entry door system can be configured with an independent traffic door—a single panel that operates like a conventional door. This is especially useful in odd-numbered configurations (3, 5, 7 panels) where a traffic door is automatically included. Even-numbered configurations can achieve this through uneven splits (e.g., 3+1 for a 4-panel system), giving you convenient daily access without needing to fold the entire Double Glass Folding Door.
| Frame Material | Architectural-grade aluminum alloy (6063-T5) |
| Profile Thickness | 1.4mm |
| Glazing | Double glazed (5mm+12Ar+5mm to 6mm+12Ar+6mm) or triple glazed |
| Glass Options | Tempered, Low-E, laminated, frosted |
| U-Value | From 0.8 W/m²K (with double/triple glazing) |
| Sound Insulation | Up to 40dB noise reduction |
| Maximum Panel Height | Up to 3000mm (118") |
| Maximum Panel Width | 700mm – 1200mm (28"–39") |
| Maximum Panels | Up to 14 panels per system |
| Panel Weight Capacity | Up to 120kg per panel |
| Finish Options | Powder coating (any RAL color), anodized, wood-grain foil, PVDF coating |

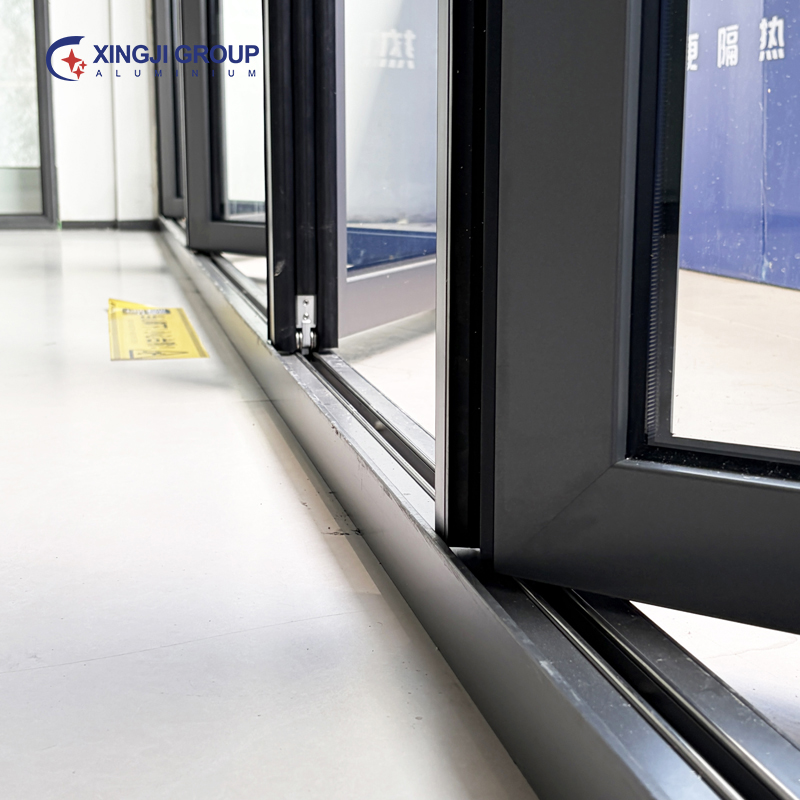

| Threshold Options | Standard, low-profile, flush |
| Opening Direction | outswing |
The versatility of our Patio Partition Aluminum Bi-folding Door makes it suitable for a wide range of residential and commercial applications:
Ø Residential – Patio doors, balcony enclosures, garden room access, kitchen extensions, interior room partitions
Ø Commercial – Cafés, restaurants, retail storefronts, hotel terraces, showrooms
Ø Office – Atriums, meeting room partitions, high-traffic access points
Ø Hospitality – Hotel balconies, resort villas, event venues
Why Choose Our Patio Partition Aluminum Bi-folding Door?
As a specialized manufacturer with extensive experience in aluminum door systems, we combine advanced production technology with rigorous quality control. Our own factory enables full customization—from frame profiles and glass options to hardware finishes and panel layouts—so every Aluminum Entry door we deliver matches your exact architectural requirements.

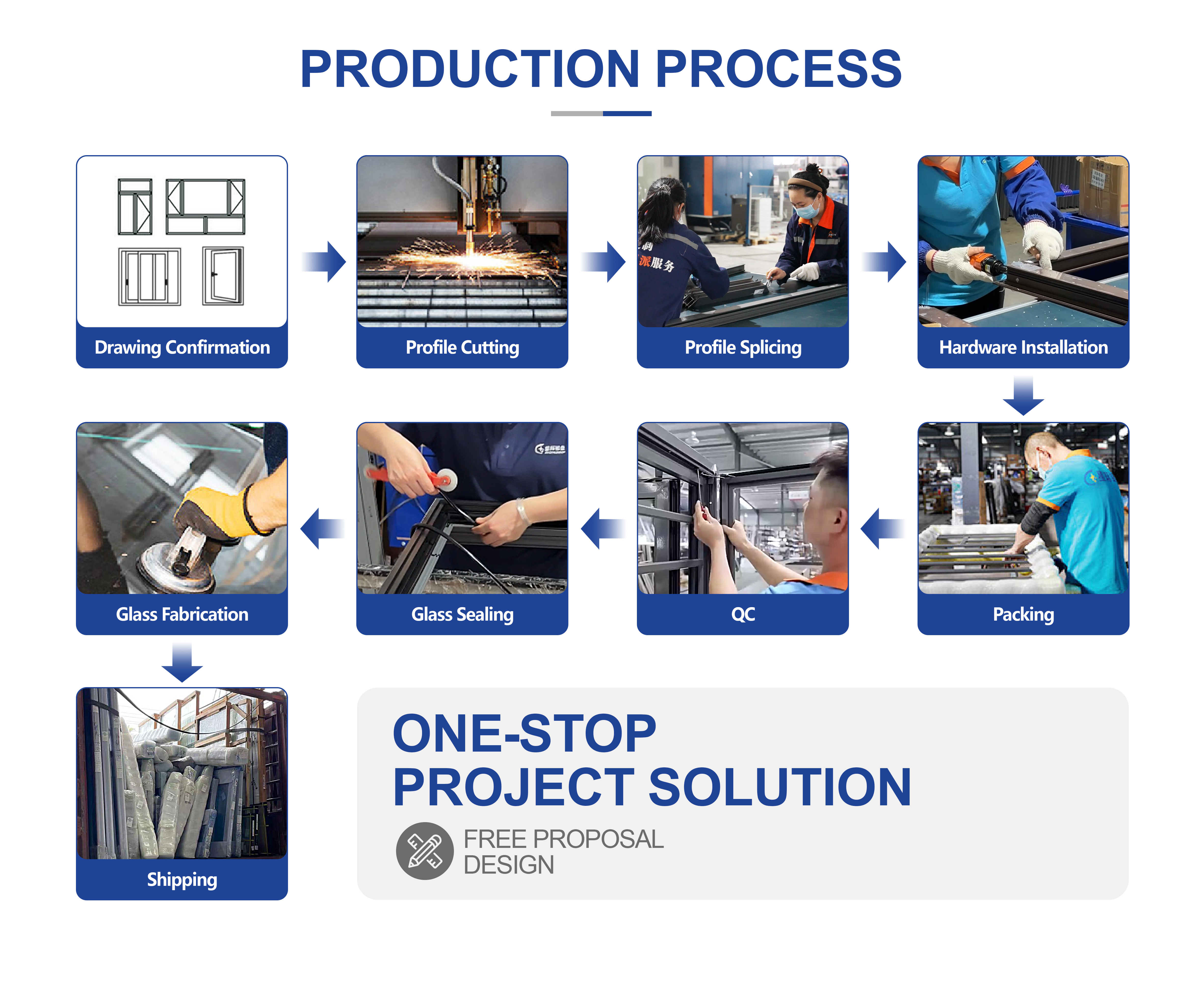

We source premium aluminum alloys and double‑glazed units from trusted suppliers, and every component is inspected at multiple stages: extrusion, surface treatment, assembly, and final testing. Our in‑house engineering team provides professional design support, helping you select the ideal folding direction, traffic door placement, and sealing solutions for any climate condition.
Our commitment to craftsmanship ensures that each Patio Balcony Double Glaze Door offers lasting durability, smooth operation, and reliable weatherproofing. We also offer flexible logistics and responsive after‑sales service, making us a dependable partner for residential, commercial, and hospitality projects. Whether you need a compact Outdoor door Bi‑Folding Door for a balcony or a multi‑panel Double Glass Folding door for a full‑wall opening, our factory‑direct approach guarantees consistent quality and competitive value—without compromising on design or longevity.
Ordering & Customization
Every Patio Partition Aluminum Bi-folding Door is custom-made to your exact specifications. To place an order, please provide:
1. Opening width and height – We will calculate the optimal panel count and configuration
2. Preferred folding direction – One-way, bi-parting, or uneven split
3. Traffic door position – Where you want the independent access panel
4. Frame finish – Choose from our extensive range of RAL colors, anodized finishes, or wood-grain foils
5. Glass type – Double glazed, triple glazed, Low-E, tempered, laminated, or frosted
6. Threshold preference – Standard, low-profile, or flush
Our technical team will work with you to design the perfect Aluminum Entry door solution for your project, ensuring a flawless fit and exceptional performance.
FAQ
Our system supports from 2 up to 14 panels, allowing you to tailor the configuration to any opening size—from a compact balcony entrance to a full-wall opening that merges indoor and outdoor living. The exact count depends on your opening width, structural constraints, and desired folding layout.
Absolutely. Whether you need a Patio Balcony Double Glaze Door for a private home or a high-traffic Outdoor door Bi-Folding Door for a café, restaurant, or showroom, our design offers robust durability, sleek aesthetics, and reliable weather sealing to perform flawlessly in any setting.
The combination of double-glazed glass and precision-engineered sealing systems significantly reduces external noise, creating a quieter, more peaceful interior. This makes our Soundproof Bi-Folding Aluminum Door an excellent choice for urban homes, offices, or any space where noise control is a priority.
Yes. As a factory-direct manufacturer, we offer extensive customization—including a wide range of RAL colors, anodized or wood-grain finishes, various glass types (tempered, Low-E, laminated, frosted), and hardware options. Every Double Glass Folding door is built to your exact specifications, ensuring it complements your architectural style perfectly.
Maintenance is minimal. The aluminum frame resists corrosion and fading, and the hardware is designed for long-term smooth operation. Periodic cleaning of tracks and rollers, along with occasional lubrication of moving parts, will keep your Patio Partition Aluminum Bi-folding Door functioning like new for years.
You can opt for one-way folding (all panels stack to one side), bi-parting (panels split and stack to both sides), or uneven splits to position a traffic door where you need it. Our technical team will help you select the best layout based on your available wall space and daily usage patterns.
